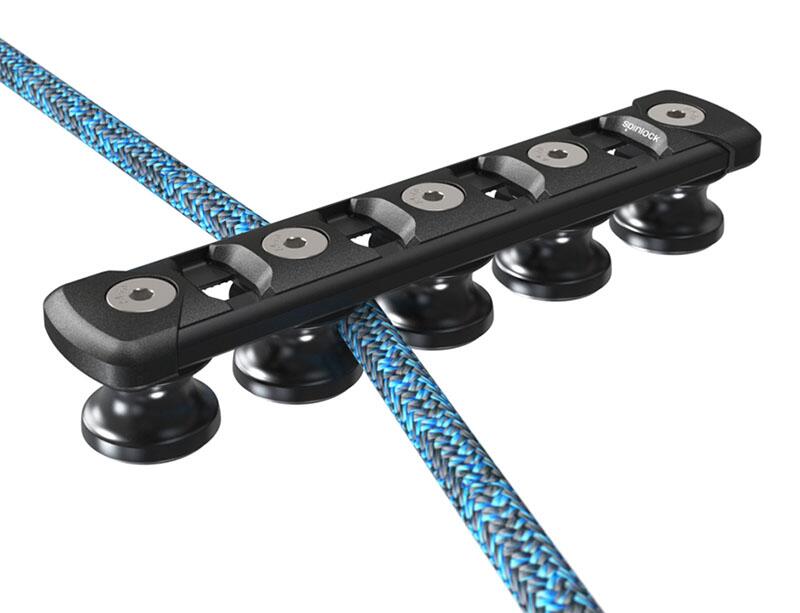

TSR Aft Organiser for diverting lines from clutches and jammers.

Custom sheave spacing, mixed diameter sheaves, 11+ sheave versions and full titanium parts available on request.

• 20mm and 30mm diameter alloy sheaves
• 30mm sheaves for diverting large deflection angles and large diameter lines
• All rotating sheaves with plain bearings
• Alloy top rails
• Fixed Sheaves can be inserted in the organiser to further increase deflection loads
• Modular design and assembly – Sheaves can be moved to any spacing
• Sheave diameters can be optimised for each application
• Tulip shaped design reduces friction from vertical defection
• Low profile design
• Simple inserting and removal of endless lines
• Central shaft designed to spread load through laminate
• Titanium parts available to further reduce weight
• Custom sheave spacing available

MAXIMUM LOADS:

20mm Sheave load = 1500kg

Total combined sheave load = 750kg x no. sheaves

30° Deflected rope load = 3000kg
